MegEvap is proud to offer Munters Celdek® Evaporative Cooling Media .

Key Benefits

• High evaporative efficiency
• Self-cleaning design
• Simple to maintain


Other Features

• Shallow, unequal angle flute design allows high velocity air flow with minimal resistance and water droplet carryover
• Resists clogging caused by dust, sand or other debris
• Self-cleaning design directs more water towards the air entering face of the pad to flush away dirt and debris

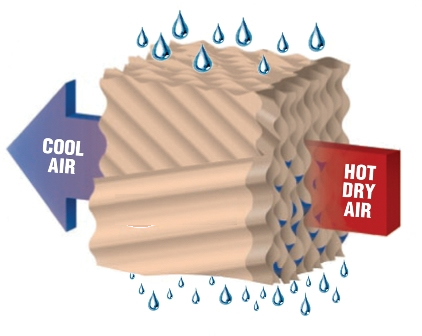

• Unique cross fluted design with unequal angle pads induce highly turbulent air and water mixing for optimal heat and moisture transfer.
• TUFedg Protective Edge Treatment available
• Algae and weather resistant
• Extends service life of the pads
• Scrubbable


Ordering Information

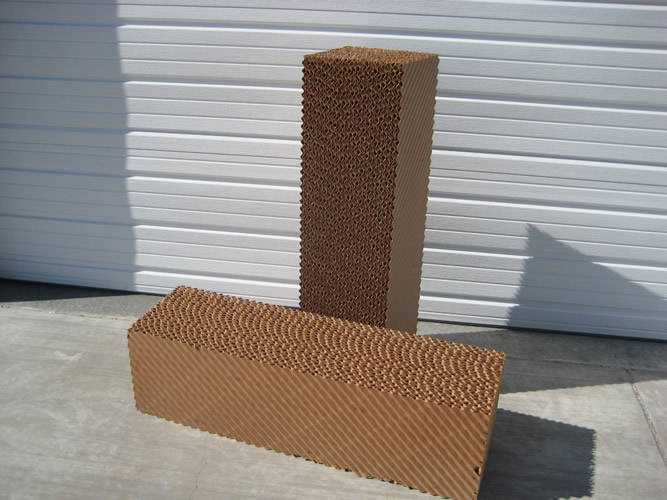

Evaporative Cooling Media 45/15 flute angles with ~1/4" flute height

Standard Media Heights: 18",24",30",36",48",60",72"

Standard Media Depths: 4", 6", 8", 12" (12" media - stock item)

(18" depth = 1pc 12d + 1pc 6d)

Standard Media Widths: 12"

Distribution Pad 45/45 flute angles with TUFedg on two sides

Standard Pad Depth: 2"

Standard Pad Width: 12" (18"W = 12"+6")

Standard Pad Length: 12",18",24",30",36",48",60",72"

All other Depths, Widths, and Heights are cut to order and customer pays drop charge up to next standard dimension.

Useful Formulas

Cubic Feet of Kuul Media = Depth (Inches) X Width (Inches) X Height (Inches) / 1728

Square Feet of Distribution Pad = Width (Inches) X Length (Inches) / 144

Example:

Evaporative Cooler Unit Dimensions:

Depth = 18" (in direction of airflow) a standard dimension

Width = 126" standard width = 12" or 24" next standard increment of width = 132"

Height = 68" including 2" dist. pad standard height = 72" cut media to 66"H

Media cubic feet = (18" X 132" X 72") / 1728 = 99.0 cubic feet

Distribution Pad square feet = (18" X 132") / 144 = 16.5 square feet

We would be glad to send you more information or a sample to test. Also available in GlasDek® Fire Resistant Media.

Call for discount pricing and delivery options at (435) 743-5561 or email at info@megevap.com.
